Pushing the Limits of Cutting Technology

Laser Technologies Including Infrared, Ultra Violet and CO2

Laser cutting technology has taken the precision parts industry to new levels, enabling increased complexity in design, higher cut quality and the ability to maintain tighter tolerances through laser ablation.

Ultra Violet Lasers

UV Laser Cutting

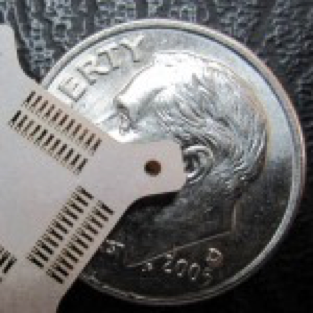

Distortion free UV laser cutting

Laser ablation in the UV frequency produces incredibly fine features, precisely cut, and with minimal thermal influence or carbon residue. These systems are mainly used for production of non-metal parts, but we’ve also achieved results with ultra thin metal parts.

  • Microline 600 LPKF lasers
  • Frequency tripled NdYag diode pumped
  • 20 micron beam
  • Pulse repetition rates up to 250 kHz
  • 355 nanometer wavelength
  • Pulse length <100 nanoseconds
  • Contact free laser ablation ensures material integrity

Read More

Infrared Lasers

Thin metal parts

Slots cut using IR frequency laser

Our IR laser systems have one of the most stable motion systems in the world. The result is a clean, burr-free cut that is exactly where your application demands. The IR laser beam diameter is so small that the most intricate designs become possible.

  • LPKF 1065 nm diode pumped NdYag
  • Contact free processing, therefore no material distortion
  • <40 micron beam for fine features
  • +/-.0005″ tolerance repeatability
  • 0.001″ – 0.025″ metal thickness range

Read More

CO2 Lasers

CO2 lasers are ideal for a wide range of materials, such as acrylics and ceramics, plus give us more versatility when it comes to thicker polyimides and flexible circuit skiving work.

Read More
